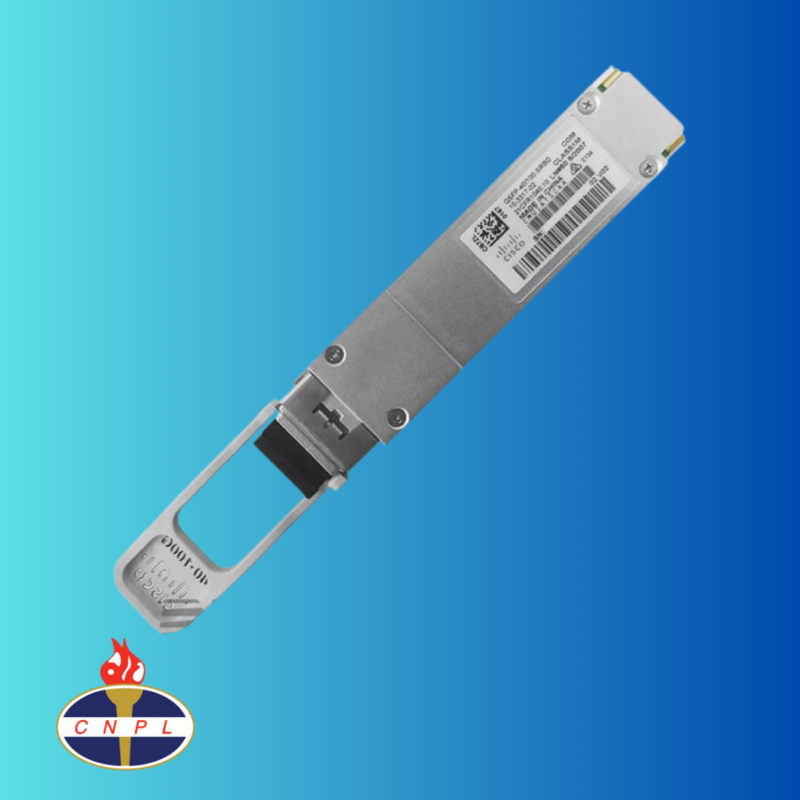

QSFP-40/100-SRBD
Original price was: ₹200,588.10.₹40,117.62Current price is: ₹40,117.62.
- Product Description: 100G and 40GBASE SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF
- Manufacturer: Cisco
- Part Number: QSFP-40/100-SRBD
- Model Number: Cisco 100G and 40G SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF
- Model Description: QSFP-40/100-SRBD= - Cisco 100 Gigabit Optical Modules
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
QSFP-40/100-SRBD Overview
The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio provides a wide range of high-density, low-power 100 Gigabit Ethernet connectivity solutions. These are tailored for data centers, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules represent Cisco’s next generation of 100G transceiver solutions built on the QSFP form factor.
Quick Specifications
| Specification | Details |
|---|---|
| Product Code | QSFP-40/100-SRBD |
| Description | 100G and 40GBASE SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Nominal Wavelength (nm) | 855, 908 |
| Cable Type | MMF |
| Core Size (Microns) | 50.0 |
| Modal Bandwidth (MHz·km) | 2000 (OM3), 4700 (OM4) |
| Cable Distance | 70m (OM3), 100m (OM4) |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Gray |
Product Highlights
- Hot-swappable design for seamless installation into Cisco 100G Ethernet QSFP ports.
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable.
- Certified and tested to deliver superior performance, quality, and reliability on Cisco QSFP-100G ports.
- High-speed electrical interface compliant with IEEE 802.3bm standards.
Comparison with Similar Products
| Product Code | Description | Cable Type | Nominal Wavelength (nm) | Cable Distance | Power Consumption (W) | Pull Tab Color |
|---|---|---|---|---|---|---|
| QSFP-100G-CWDM4-S= | 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF | SMF | 1271, 1291, 1311, 1331 | 2km | 3.5 | Green |
| QSFP-100G-ER4L-S= | 100GBASE QSFP Transceiver, 40km reach over SMF, Duplex LC | SMF | 1295, 1300, 1304, 1309 | 40km (with FEC) | 4.5 | Red |
| QSFP-100G-LR4-S= | 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF | SMF | 1295, 1300, 1304, 1309 | 10km | 4.0 | Blue |
| QSFP-100G-PSM4-S= | 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF | SMF | 1310 | 500m | 3.5 | Orange |
| QSFP-100G-SM-SR= | 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60°C | SMF | 1271, 1291, 1311, 1331 | 2km | 3.5 | Green |
| QSFP-100G-SR4-S= | 100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF | MMF | 850 | 100m | 3.5 | Beige |
| QSFP-40/100-SRBD= | 100G and 40GBASE SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF | MMF | 855, 908 | 100m | 3.5 | Gray |
QSFP-40/100-SRBD Specification
QSFP-40/100-SRBD Specification |
|
| Dimensions | 13.5 x 18.4 x 72.4 mm |
|
QSFP Port cabling specifications |
|
| Nominal Wavelength (nm) | 855, 908 |
| Cable Type | MMF |
| Core Size (Microns) | 50.0
50.0 |
| Modal Bandwidth (MHz*km)*1 | 2000 (OM3)
4700 (OM4) |
| Cable Distance | 70m
100m |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Gray |
| *1 Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm | |
|
Optical characteristics |
|
| Transmit Power (dBm) per lane*2 | Max:+4 (100G)
+5 (40G) Min:-6 (100G) -4 (40G) |
| Receive Power (dBm) per lane*2*3 | Max:4 (100G)
5 (40G) Min: -7.9 (100G) -6 (40G) |
| Receive Power (dBm) per lane | 855, 908 |
| *2 Transmitter and receiver power is average optical power, unless specified
*3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation |
|
|
Environmental Conditions and Power Requirements |
|
| Commercial temperature | •100G: +10C to +60C
•40G: +10C to +70C |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
|
Regulatory and Standards compliance |
|
| Standards | •SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) – Rev 1.8 May 10, 2013
•SFF-8636: Common Management Interface – DRAFT Rev 1.9 May 12, 2014 •802.3™-2012 IEEE Standard for Ethernet •IEEE 802.3ba Amendment of IEEE Std 802.3-2012 •IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •RoHS 6 |
| Safety | •Cable jacket of QSFP copper modules is UL E116441 Compliant
•QSFP copper cables are ELV compliant |
