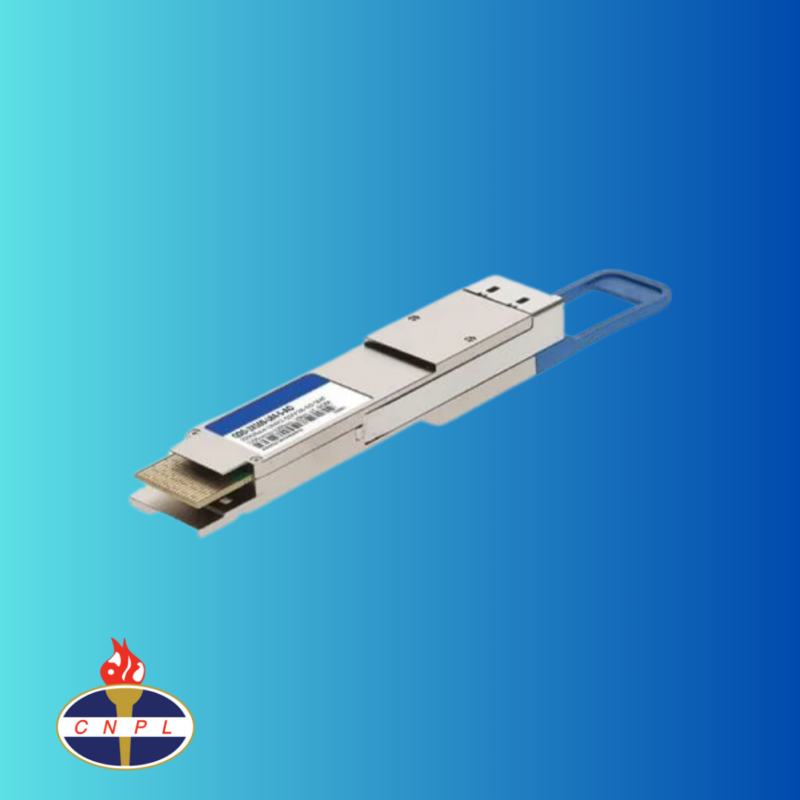

QDD-2X100-LR4-S
Original price was: ₹854,250.00.₹170,850.00Current price is: ₹170,850.00.
- Product Description: QSFP-DD Transceiver, 2X 100GBASE-LR4, 2X Duplex CS, 10km SMF
- Manufacturer: Cisco
- Part Number: QDD-2X100-LR4-S
- Model Number: QSFP-DD Transceiver, 2X 100GBASE-LR4, 2X Duplex CS, 10km SMF
- Model Description: Cisco QDD-2X100-LR4-S
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
QDD-2X100-LR4-S Overview
The Cisco QDD-2X100-LR4-S QSFP-DD Transceiver offers high performance and reliability, making it an ideal solution for enterprises requiring long-range data transmission. Perfect for data centers and network applications, this transceiver supports 2x 100GBASE-LR4 connectivity over distances of up to 10km using single-mode fiber, enabling high-speed, long-distance communication.
Key Features
- High-Density QSFP-DD Form Factor: Provides compact and efficient connectivity.
- 2x 100GBASE-LR4 Capability: Dual 100G connectivity for optimal performance.
- Up to 10km Reach: Supports long-distance data transmission over single-mode fiber.
- Dual Duplex CS Connectors: Offers reliable, high-speed connectivity.
- Enhanced Data Center Performance: Optimized for high-speed and long-range applications.
Product Features Comparison
| Model | Speed | Form Factor | Connector Type | Reach | Wavelength | Fiber Type | Applications |
|---|---|---|---|---|---|---|---|
| Cisco QDD-2X100-LR4-S | 2x 100GBASE | QSFP-DD | Duplex CS | 10km | 1310nm | Single Mode | Data Centers |
| Cisco QDD-400G-SR8-S | 400GBASE | QSFP-DD | 24-fiber MPO | 100m | 850nm | Multi Mode | Short Reach |
| Cisco QSFP-100G-LR4-S | 100GBASE | QSFP28 | LC | 10km | 1310nm | Single Mode | Long Reach |
| Arista QSFP-100G-LR4 | 100GBASE | QSFP28 | LC | 10km | 1310nm | Single Mode | Enterprise |
| Juniper JNP-QSFP-100G-LR4 | 100GBASE | QSFP28 | LC | 10km | 1310nm | Single Mode | Networking |
| Huawei QSFP-100G-LR4 | 100GBASE | QSFP28 | LC | 10km | 1310nm | Single Mode | Telecom |
| Finisar FTLX3814MCC | 100GBASE | QSFP28 | LC | 2km | 1310nm | Single Mode | Data Centers |
Application Scenarios
- High-Speed Data Centers: Ideal for large-scale data center connections.
- Long-Distance Network Connections: Perfect for enterprise and network infrastructure.
- Enterprise IT Infrastructure: Supports long-distance communications within corporate networks.
Optional Accessories
| Model | Description |
|---|---|
| CAB-QSFP-DD-1M | 1 Meter QSFP-DD to QSFP-DD Cable |
| CVR-QSFP-DD-SFP | QSFP-DD to SFP Adapter |
| CAB-QSFP-DD-2M | 2 Meter QSFP-DD to QSFP-DD Cable |
This transceiver is designed for enterprises seeking high-performance, long-distance connectivity in their data centers and IT infrastructure.
QDD-2X100-LR4-S Specification
QDD-2X100-LR4-S Specifications |
|
| Brand | Cisco |
| Product Name | QDD-2X100-LR4-S |
| Form Factor | QSFP-DD |
| Maximum Data Rate | 2x 100Gbps |
| Interface | 2x Duplex CS |
| Transmission Distance | 10 km |
| Wavelength | 1310 nm |
| Media | Single-Mode Fiber (SMF) |
| Temperature Range | -5??C to 70??C |
| Supply Voltage | 3.3V |
| Power Consumption | < 6 Watts |
| Connector Type | Duplex CS |
| Modulation Format | PAM4 |
| Digital Diagnostic Monitoring | Yes |
| Optical Components | DFB Laser |
| Safety Standards | Compliant with laser safety standards 21 CFR 1040 and IEC 60825-1 |
| EMC Standards | Directive 2014/30/EU |
| RoHS Directive | RoHS 2011/65/EU |
| MTBF | Greater than 5 million hours |
| Hot-Pluggable | Yes |
| Applications | Data Center Interconnect, Enterprise Networks, Service Provider Transport |
