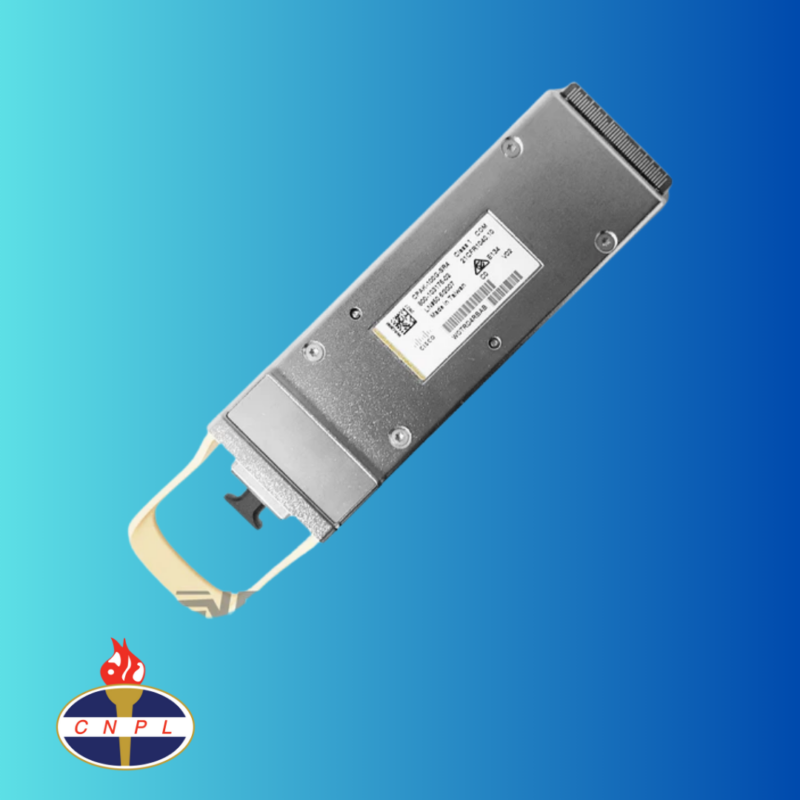

CPAK-100G-SR4
Original price was: ₹671,824.70.₹134,364.94Current price is: ₹134,364.94.
- Product Description: CPAK optical transceiver module, 100GBASE-SR4, 100m OM4
- Manufacturer: Cisco
- Part Number: CPAK-100G-SR4
- Model Number: CPAK-100G-SR4 - Cisco 100 Gigabit Optical Modules
- Model Description: CPAK optical transceiver module, 100GBASE-SR4, 100m OM4
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
Cisco CPAK-100G-SR4 Module Overview
The Cisco CPAK-100G-SR4 is a high-density, multimode fiber (MMF) transceiver designed for 100-Gbps Ethernet connectivity. Perfectly suited for enterprise data centers and service provider edge networks, this module offers energy-efficient, high-speed data transmission over short distances, making it a reliable choice for high-bandwidth applications.
Key Specifications
- Product Code: CPAK-100G-SR4
- Description: 100GBASE-SR4 Cisco CPAK Module for MMF
- Dimensions: 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
- Wavelength: 850 nm
- Cable Type: MMF (12 fibers)
- Core Size: 50.0 microns
- Modal Bandwidth:
- OM3: 2000 MHz*km
- OM4: 4700 MHz*km
- Cable Distance:
- OM3: Up to 70 meters
- OM4: Up to 100 meters
Features and Benefits
- High Bandwidth Capability: Supports up to 10 100-Gigabit Ethernet connections, offering 1 Tbps of total front-panel bandwidth for robust data throughput.
- Energy Efficiency: Consumes 40% less power than CFP2 modules and 70% less than CFP modules, reducing operational costs.
- Compact Design: Provides 20% greater port density compared to competing products, optimizing rack space in data centers.
- Hot-Swappable Functionality: Simplifies device replacement without interrupting network operations, ensuring business continuity.
- Flexible Compatibility: Interoperable with various IEEE standards, including 100GBASE-SR4 and other compliant transceivers, for diverse deployment scenarios.
- Digital Optical Monitoring (DOM): Enables real-time monitoring of the module’s operating parameters to ensure consistent performance.
- Cisco Quality Identification (ID): Guarantees certified compatibility with Cisco switches, routers, and optical platforms, ensuring seamless integration.
- Investment Protection: Supports a pay-as-you-grow model, making it easy to scale to higher bandwidth requirements without significant upgrades.
Applications
- Enterprise Data Centers: Ideal for short-range, high-speed connections in high-density environments.
- Service Provider Networks: Facilitates efficient, cost-effective edge connectivity for next-generation networks.
- High-Bandwidth Workloads: Perfect for applications like cloud computing, virtualization, and large-scale data analytics.
Platform Compatibility
The CPAK-100G-SR4 module is compatible with several Cisco platforms, including:
- ASR 9000 Series Routers
- CRS-X Carrier Routing Systems
- NCS 2000, 4000, and 6000 Series Routers
- Nexus 7000 and 7700 Series Switches
- Cisco ONS Transport Platforms
Comparison with Similar Modules
| Module | Cable Type | Cable Distance | Wavelength | Primary Use Case |
|---|---|---|---|---|
| CPAK-100G-CWDM4= | SMF Duplex | Up to 2 km | 1271-1331 nm | Long-range enterprise networks |
| CPAK-100G-LR4= | SMF Duplex | Up to 10 km | 1310 nm | Long-haul connections |
| CPAK-100G-ER4L= | SMF Duplex | Up to 25 km | 1310 nm | Extended range applications |
| CPAK-100G-SR4= | MMF (12 fibers) | Up to 100 m | 850 nm | High-density, short-range setups |
| CPAK-100G-PSM4= | SMF (12 fibers) | Up to 500 m | 1295-1325 nm | Parallel single-mode deployments |
| CPAK-100G-SR10= | MMF (12 fibers) | Up to 150 m | 850 nm | Multichannel short-range setups |
CPAK-100G-SR4 Specification
CPAK-100G-SR4 Specification |
|
| Description | 100GBASE-SR4 Cisco CPAK Module for MMF |
| Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Cisco CPAK port cabling specifications |
|
| Wavelength (nm) | 850 |
| Cable Type | MMF (12 fibers) |
| Core Size (Microns) | 50.0
50.0 |
| Modal Bandwidth (MHz*km) | 2000 (OM3)
4700 (OM4) |
| Cable Distance | 70 m
100 m |
|
Optical transmit and receive specifications |
|
| Type | 100GBASE-SR4 850 nm MMF |
| Transmit Power | Max:+2.4 per lane
Min:-8.4 per lane |
| Receive Power (dBm) | Max:+2.4 per lane
Min:-5.2 per lane |
| Transmit and Receive Center Wavelength Range (nm) | Four lanes: 840 to 860 nm |
| Supported Mode | 1x100G |
| Supported Protocol | IEEE 802.3ba |
|
Environmental conditions and power requirements |
|
| Storage temperature | -40 to 85° C (-40 to 185° F) |
| Operating temperature | 0 to 70° C (32 to 158° F) |
| Power consumption | At 70° C: <9.0W maximum |
