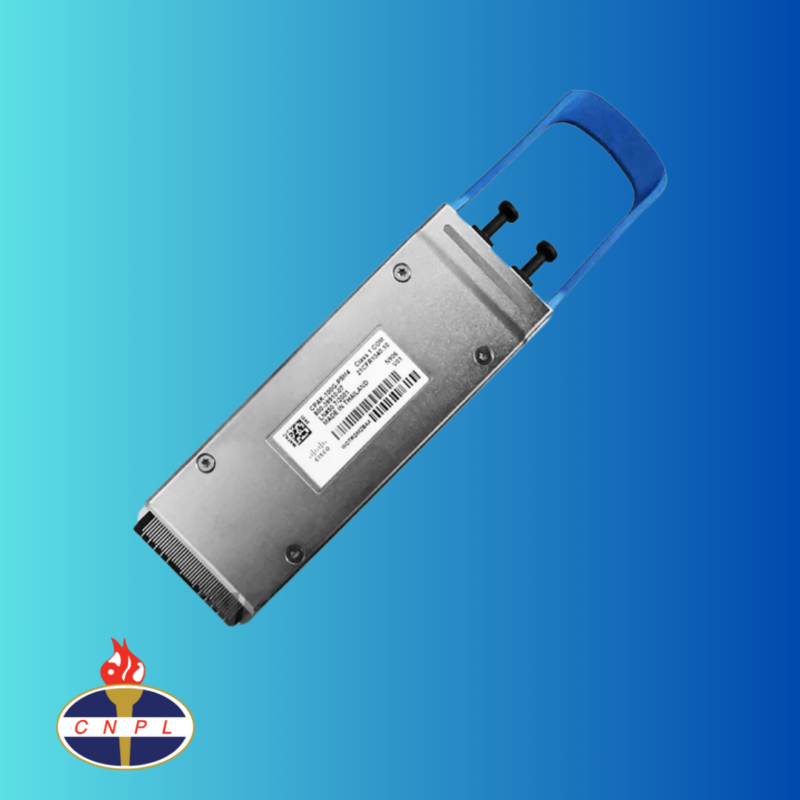

CPAK-100G-PSM4
Original price was: ₹2,211,994.95.₹442,398.99Current price is: ₹442,398.99.
- Product Description: CPAK optical transceiver module, PSM4 500m SMF, parallel
- Manufacturer: Cisco
- Part Number: CPAK-100G-PSM4
- Model Number: CPAK-100G-PSM4 - Cisco 100 Gigabit Optical Modules
- Model Description: CPAK optical transceiver module, PSM4 500m SMF, parallel
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
Cisco CPAK-100G-PSM4 Overview
The Cisco CPAK-100G-PSM4 module is a high-performance, compact optical transceiver designed to deliver 100-Gbps connectivity over single-mode fiber (SMF). With its power-efficient design and flexible deployment options, it is ideal for enterprise data centers, service provider networks, and edge deployments requiring reliable and high-density 100G connectivity.
Quick Specifications
- Product Code: CPAK-100G-PSM4
- Description: 100GBASE PSM4 Cisco CPAK Module for SMF
- Dimensions: 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
- Wavelength Range: 1295 nm to 1325 nm
- Cable Type: Single-mode fiber (12 fibers)
- Core Size: 9-micron core (G.652-compliant)
- Cable Distance: Up to 500 meters
Key Features and Benefits
- High Bandwidth Performance: Provides up to 100-Gbps data transfer rates to meet the demands of modern, high-speed networking environments.
- Energy Efficient: Consumes 40% less power than CFP2 modules and 70% less than CFP modules, reducing operational costs.
- Space Optimization: Compact design supports 20% greater port density, maximizing rack space in data centers.
- Hot-Swappable: Easy-to-install input/output device for seamless deployment and reduced downtime.
- Flexible Compatibility: Interoperable with 100GBASE-SR4, 100GBASE-LR4, and other IEEE-compliant transceivers.
- Digital Optical Monitoring (DOM): Ensures real-time monitoring of key performance metrics for enhanced network reliability.
- Cisco Quality Identification (ID): Guarantees compatibility and performance on certified Cisco platforms.
- Future-Proofing: Supports a pay-as-you-grow model, allowing upgrades to higher bandwidths without significant hardware changes.
Applications
- Enterprise Data Centers: Facilitates high-speed interconnects with minimal latency to handle growing data volumes.
- Service Provider Networks: Enables efficient edge deployments and upgrades to support increasing traffic demands.
- High-Density Environments: Ideal for environments requiring energy efficiency and high port density to optimize space and performance.
Supported Platforms
Cisco CPAK-100G-PSM4 modules are supported on various Cisco platforms, including:
- ASR 9000 Series Routers
- CRS-X Carrier Routing Systems
- NCS 2000, 4000, and 6000 Series Routers
- Nexus 7000 and 7700 Series Switches
- Cisco ONS Transport Platforms
Comparison with Similar Models
| Model | Key Difference |
|---|---|
| CPAK-100G-CWDM4= | Supports coarse wavelength division multiplexing for long-distance connectivity (up to 2 km). |
| CPAK-100G-LR4= | Offers long-range support (up to 10 km) over SMF with LC connectors. |
| CPAK-100G-ER4L= | Provides extended range (up to 25 km) over SMF. |
| CPAK-100G-SR4= | Optimized for multimode fiber (MMF) applications with shorter distances (up to 70 m). |
| CPAK-100G-SR10= | Designed for MMF connections supporting breakout applications and higher port density. |
CPAK-100G-PSM4 Specification
CPAK-100G-PSM4 Specification |
|
| Description | 100GBASE PSM4 Cisco CPAK Module for SMF |
| Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Cisco CPAK port cabling specifications |
|
| Wavelength (nm) | 1295 to 1325 |
| Cable Type | SMF (12 fibers) |
| Core Size (Microns) | 9-micron core SMF per G.652 |
| Modal Bandwidth (MHz*km) | \ |
| Cable Distance | 500 m |
|
Optical transmit and receive specifications |
|
| Type | 100GBASE PSM4 SMF |
| Transmit Power | Max:+2.0 per lane
Min:-9.4 per lane |
| Receive Power (dBm) | Max:+9.4 per lane
Min:-2.0 per lane |
| Transmit and Receive Center Wavelength Range (nm) | Four lanes: 1295 to 1325 |
| Supported Mode | 1x100G |
| Supported Protocol | IEEE 802.3ba |
|
Environmental conditions and power requirements |
|
| Storage temperature | -40 to 85° C (-40 to 185° F) |
| Operating temperature | 0 to 70° C (32 to 158° F) |
| Power consumption | At 70° C: <9.0W maximum |
