SFP-25G-SR-S
Original price was: ₹100,043.30.₹20,008.66Current price is: ₹20,008.66.
- Product Description: 25GBASE-SR SFP Module
- Manufacturer: Cisco
- Part Number: SFP-25G-SR-S
- Model Number: SFP-25G-SR-S= - Cisco 25 Gigabit Optical Modules
- Model Description: 25GBASE-SR SFP Module
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
Cisco SFP-25G-SR-S Overview

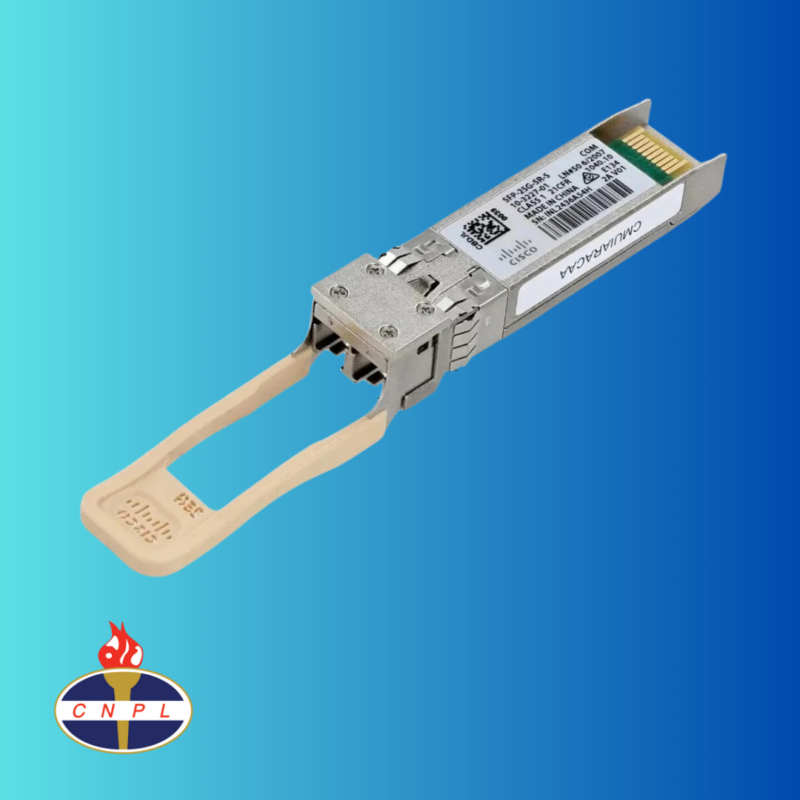

The Cisco SFP-25G-SR-S is a 25GBASE-SR SFP28 transceiver module designed to provide high-density, low-power 25 Gigabit Ethernet connectivity for data centers and high-performance computing (HPC) networks. Built with the SFP28 form factor, it ensures efficient, reliable, and IEEE-compliant connectivity for short-reach multi-mode fiber (MMF) applications.
Quick Specifications
| Specification | Details |
|---|---|
| Product Code | SFP-25G-SR-S |
| Description | Cisco 25GBASE-SR SFP28 Module for MMF |
| Cable Distance | 70m (OM3), 100m (OM4) |
| Max Power Consumption | 1.2W |
| Pull Tab Color | Beige |
| Wavelength | 850nm |
| Cable Type | MMF |
| Core Size | 50.0 microns |
| Modal Bandwidth | 2000 MHz·km (OM3), 4700 MHz·km (OM4) |
Key Features
- Superior Compatibility: Fully interoperable with other IEEE-compliant 25G interfaces, ensuring seamless integration into diverse network environments.
- Tested and Certified by Cisco: Optimized for use with Cisco SFP28 ports to guarantee top-tier performance and long-term reliability.
- High-Speed Connectivity: Fully compliant with IEEE 802.3by and IEEE 802.3cc standards, supporting 25Gbps Ethernet for fast and efficient data transfer.
- Short-Range Optimization: Designed for OM3 and OM4 MMF cables with distances up to 70 meters (OM3) and 100 meters (OM4).
Product Comparison
| Product Code | Description | Cable Distance | Wavelength | Cable Type |
|---|---|---|---|---|
| SFP-10/25G-CSR-S= | Cisco 10/25GBASE-CSR SFP28 for MMF | 300/400m (OM3/OM4) | 850nm | MMF |
| SFP-10/25G-LR-S= | Cisco 10/25GBASE-LR SFP28 for SMF | 10km | 1310nm | SMF |
| SFP-25G-SR-S | Cisco 25GBASE-SR SFP28 for MMF | 70/100m (OM3/OM4) | 850nm | MMF |
SFP-25G-SR-S Specification
SFP-25G-SR-S Specification |
|
| Description | Cisco 25GBASE-SR SFP28 Module for MMF |
|
25G Port cabling specifications |
|
| Cable Distance | 70/100m (OM3/OM4) |
| Max Power Consumption (W) | 1.2 |
| Pull Tab Color | Beige |
|
SFP28 port cabling specifications |
|
| Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (Microns) | 50.0 |
| Modal Bandwidth | 2000 (OM3)
4700 (OM4) |
| Cable Distance | 70m
100m |
|
Optical transmit and receive specifications |
|
| Type | 25GBASE-SR 850nm MMF |
| Transmit Power (dBm) | Max:+2.4
Min:-8.4 |
| Receive Power (dBm) | Max:+2.4
Min:-10.3 |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
|
Environmental Conditions and Power Requirements |
|
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
|
Regulatory and Standards compliance |
|
| Standards | •SFF-8402: SFP+ 28 Gb/s 1x Pluggable Transceiver Solution (SFP28) – Rev 1.0 March 30, 2014
•SFF-8472: Diagnostic Monitoring Interface for Optical Transceivers – Rev 12 August 29, 2014 •IEEE 802.3™- 2015 IEEE Standard for Ethernet •IEEE P802.3by™- 2016 Amendment 2: Media Access Control Parameters, Physical Layers, and Management Parameters for 25 Gb/s Operation •IEEE P802.3cc™ – 2017 Amendment 11: Physical Layer and Management Parameters for Serial 25 Gb/s Ethernet Operation Over Single-Mode Fiber •RoHS 6 |
| Safety | • Laser Class 1 21CFR-1040 LN#50 7/2001
•Laser Class 1 IEC60825-1 •Cable jacket of SFP copper modules is UL E116441 Compliant •SFP copper cables are ELV Compliant |
