SFP-10G-LR-S
Original price was: ₹201,090.45.₹40,218.09Current price is: ₹40,218.09.
- Product Description: 10GBASE-LR SFP Module, Enterprise-Class
- Manufacturer: Cisco
- Part Number: SFP-10G-LR-S
- Model Number: 10GBASE-LR SFP+ Module for SMF S-Class
- Model Description: SFP-10G-LR-S - Cisco SFP GLC Module
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished, NOB
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317

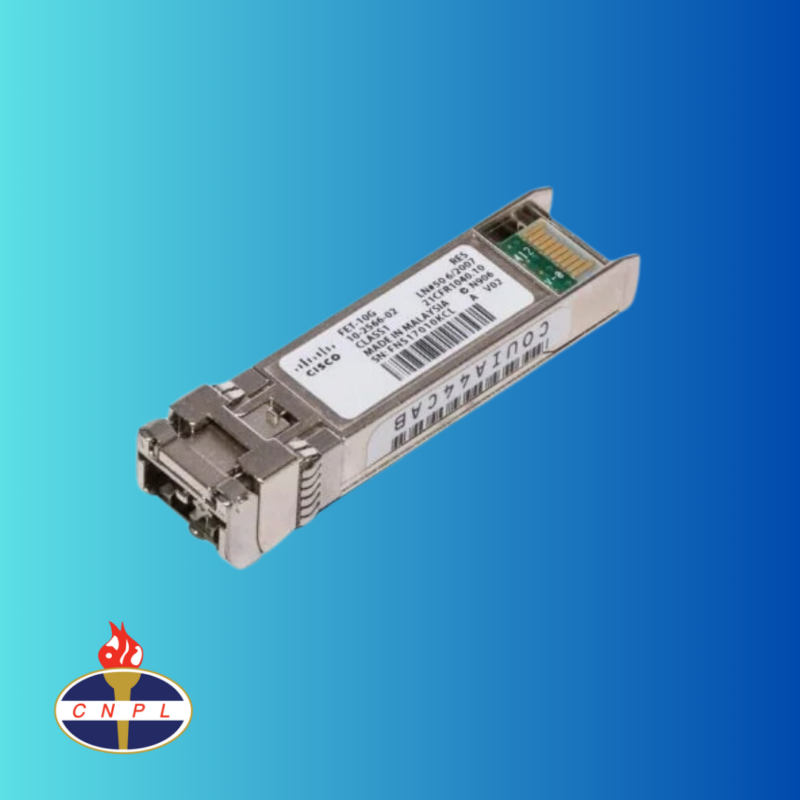

Cisco SFP-10G-LR-S Overview
The Cisco SFP-10G-LR-SĀ is a high-performance SFP+ transceiver designed for 10GBase-LR connectivity. It provides a transmission distance of up to 10km over single-mode fiber (SMF) using a 1310nm wavelength via a duplex LC connector. Guaranteed for full compatibility with equivalent Cisco transceivers, it offers seamless integration into Cisco networking solutions.
Quick Specifications
| Parameter | Value |
|---|---|
| SKU | SFP-10G-LR-S |
| Connector | LC |
| Form Type | SFP+ |
| Cable Type | SMF |
| Maximum Distance | 10km |
| Interface | 10GBase-LR |
| Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
Key Features
- Duplex LC Connector: Ensures reliable and efficient connectivity.
- Hot-Pluggable: Simplifies upgrades and maintenance with no service interruption.
- Low EMI Design: Reduces electromagnetic interference for stable network performance.
- Enhanced ESD Protection: Provides increased durability against electrostatic discharge.
- DFB Transmitter and PIN Receiver: Delivers high-quality signal transmission and reception.
- Extended Reach: Supports distances of up to 10km on 9/125Ī¼m SMF.
- Energy Efficient: Operates on a single 3.3V power supply with low power consumption.
- Standards Compliant:
- GR-253-CORE, ensuring telecom-grade reliability.
- RoHS Compliant, lead-free, and environmentally friendly.
- Compatible with IEEE 802.3ae, SFP+ MSA (SFF-8431 Rev4.1), and SFF-8472 Rev.11.0 standards.
- Digital Diagnostics: Supports advanced monitoring via SFF-8472 Rev.11.0 compliance.
Comparison with Similar Products
| Product Name | SFP-10G-LR-S= | SFP-10G-SR |
|---|---|---|
| Wavelength (nm) | 1310 | 850 |
| Cable Type | SMF | MMF |
| Maximum Distance | 10km | 300m |
| Temperature Range | 0Ā°C to 70Ā°C | 0Ā°C to 70Ā°C |
Applications
- Data Centers: High-speed, long-distance connections for mission-critical data.
- Enterprise Networks: Reliable connectivity for corporate infrastructures.
- Telecommunication Systems: Optimized for backbone links and long-range transmissions.
- Storage Area Networks (SANs): Enables high-speed connections in SAN environments.
SFP-10G-LR-S Specification
C9400-LC-48TĀ Specifications |
|
| Wavelength (nm) | 1310 |
| Cable Type | SMF |
| Core Size (Microns) | G.652 |
| Modal Bandwidth (MHz*km)*3 | – |
| SCable Distance*1 | 10km |
| Type | 10GBASE-LR 1310nm SMF |
| Transmit Power (dBm)* | Maximum: 0.5
Minimum: -8.2 |
| Receive Power (dBm)* | Maximum: 0.5
Minimum: -14.4 |
| Transmit and Receive Wavelength (nm) | 1260 to 1355 |
| Bail Latch Color | Blue |
| Power Consumption (W) | 1 |
| Operating Temperature Range | COM |
*Ā Transmitter and receiver power is in average, unless specified.
