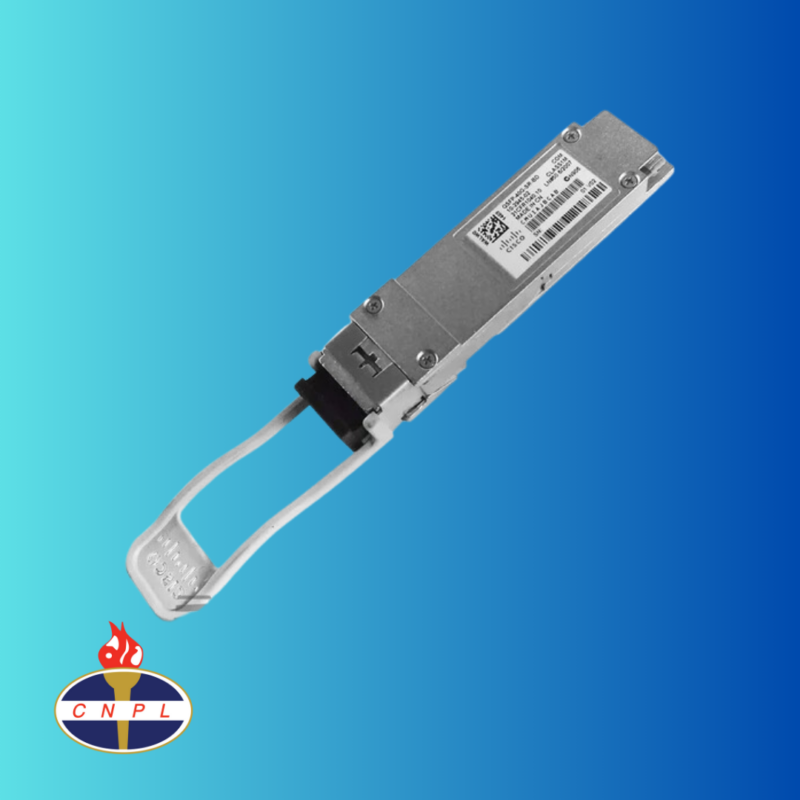

QSFP-40G-BD-RX
Original price was: ₹110,097.10.₹22,019.42Current price is: ₹22,019.42.
- Product Description: QSFP40G BiDi-Monitor Short-reach Transceiver For Data Broker
- Manufacturer: Cisco
- Part Number: QSFP-40G-BD-RX
- Model Number: QSFP40G BiDi-Monitor Short-reach Transceiver For Data Broker
- Model Description: QSFP-40G-BD-RX= - Cisco 40 Gigabit Optical Modules
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
QSFP-40G-BD-RX Overview
The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) family provides high-density, low-power 40 Gigabit Ethernet connectivity solutions, ideal for data centers, high-performance computing (HPC) networks, enterprise core and distribution layers, and service provider environments. The QSFP-40G-BD-RX module offers bi-directional capabilities and is designed for use with duplex multimode fiber (MMF), enabling high-speed data transmission over long distances while maintaining superior performance and reliability.
Quick Specs
| Specification | Details |
|---|---|
| Product Code | QSFP-40G-BD-RX |
| Description | Cisco 40GBASE-SR Bi-Directional QSFP Monitor Module for Duplex MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 832 – 918 |
| Cable Type | MMF (Multimode Fiber) |
| Core Size (microns) | 50.0 |
| Modal Bandwidth (MHz-km) | 500 (OM2), 2000 (OM3), 4700 (OM4) |
| Cable Distance | 30m (OM2), 100m (OM3), 150m (OM4) |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Beige (or Gray with Rx mark) |
Product Features & Benefits
- Bi-Directional 40G Ethernet Connectivity: The QSFP-40G-BD-RX= module is designed to support bi-directional 40 Gigabit Ethernet, providing efficient data transmission over duplex multimode fiber (MMF).
- Hot-swappable: This QSFP module is hot-swappable, meaning it can be installed or replaced without needing to power down the system, minimizing downtime and enhancing operational efficiency.
- Interoperability: Fully compatible with other IEEE-compliant 40GBASE interfaces, offering seamless integration with existing networking infrastructure.
- Superior Performance & Reliability: The module is rigorously tested and certified on Cisco QSFP 40G ports, ensuring top-notch performance, reliability, and compatibility with Cisco systems.
- High-Speed Electrical Interface: Compliant with the IEEE 802.3ba standard, ensuring robust, high-speed data transfer for demanding applications.
- QSFP Form Factor: Features a QSFP form factor with a 2-wire I2C communication interface, complying with SFF 8436 and QSFP Multisource Agreement (MSA) for optimal performance.
Compare to Similar Items
| Product Code | QSFP-40G-BD-RX | QSFP-40G-SR-BD |
|---|---|---|
| Description | Cisco 40GBASE-SR Bi-Directional QSFP Monitor Module for Duplex MMF | Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 832 – 918 | 832 – 918 |
| Cable Type | MMF | MMF |
| Core Size (microns) | 50.0 | 50.0 |
| Modal Bandwidth (MHz-km) | 500 (OM2), 2000 (OM3), 4700 (OM4) | 500 (OM2), 2000 (OM3), 4700 (OM4) |
| Cable Distance | 30m (OM2), 100m (OM3), 150m (OM4) | 30m (OM2), 100m (OM3), 150m (OM4) |
| Power Consumption (W) | 3.5 | 3.5 |
| Pull Tab Color | Beige (or Gray with Rx mark) | Gray |
QSFP-40G-BD-RX Specification
QSFP-40G-BD-RX Specification |
|
| Description | Cisco 40GBASE-SR Bi-Directional QSFP Monitor Module for Duplex MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
|
QSFP Port cabling specifications |
|
| Wavelength (nm) | 832 – 918 |
| Cable Type | MMF |
| Core Size (microns) | 50.0
50.0 50.0 |
| Modal Bandwidth (MHz-km) | 500 (OM2)
2000 (OM3) 4700 (OM4) |
| Cable Distance | 30m
100m 150m |
| Commercial temperature | 3.5 |
| Storage temperature | Beige(or Gray with “Rx” mark) |
|
Optical characteristics |
|
| Type | 40GBASE-SR-BiDi, Duplex MMF, Monitor |
| Transmit Power (dBm) | Max:\
Min:\ |
| Receive Power (dBm) | Max:+5.0 per lane
Min:-6.0 per lane |
| Transmit and Receive Wavelength (nm) | 832 to 918 |
|
Environmental conditions |
|
| Operating temperature | +10 to 70°C (50 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
|
Regulatory and standards compliance |
|
| Standards
|
•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6 |
| Safety
|
•Cable jacket of QSFP copper modules is UL E116441 Compliant
•QSFP copper cables are ELV Compliant |
