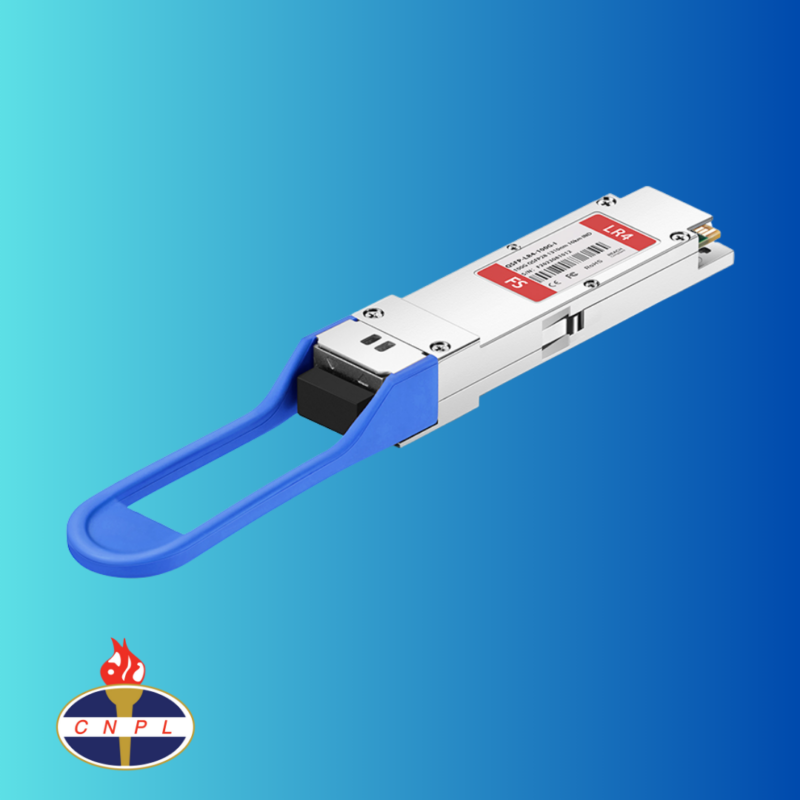

QSFP-100G-LR4-I
₹3,015,854.40 Original price was: ₹3,015,854.40.₹603,170.88Current price is: ₹603,170.88.
- Product Description: 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF, Ind Temp
- Manufacturer: Cisco
- Part Number: QSFP-100G-LR4-I
- Model Number: 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF, Ind Te
- Model Description: Cisco QSFP-100G-LR4-I
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
- Overview
- Specifications
- Warranty
Cisco QSFP-100G-LR4-I Overview
The Cisco QSFP-100G-LR4-I is a high-performance 100GBASE LR4 QSFP transceiver, engineered for long-range data transmission over single-mode fiber (SMF) with a reach of up to 10 kilometers. It is an ideal solution for industrial environments, data centers, and high-speed network applications.
Key Features of QSFP-100G-LR4-I
- 100G data transfer rate
- Up to 10km transmission distance
- LC connector type
- Compatible with single-mode fiber
- Operates within an industrial temperature range
Product Feature Comparison
Feature | Cisco QSFP-100G-LR4-I | Cisco QSFP-100G-SR4 | Juniper JNP-QSFP-100G-LR4 | Arista QSFP-100G-LR4 | Huawei QSFP-100G-LR4 | Intel TXN22120 | Finisar FTLC1151RDPL |
---|---|---|---|---|---|---|---|
Data Rate | 100G | 100G | 100G | 100G | 100G | 100G | 100G |
Connector Type | LC | MPO | LC | LC | LC | MPO | LC |
Max Distance | 10km | 100m | 10km | 10km | 10km | 10km | 10km |
Wavelength | 1310nm | 850nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm |
Fiber Type | SMF | MMF | SMF | SMF | SMF | SMF | SMF |
Temperature Range | -40Ā°C to 85Ā°C | 0Ā°C to 70Ā°C | 0Ā°C to 70Ā°C | 0Ā°C to 70Ā°C | 0Ā°C to 70Ā°C | 0Ā°C to 70Ā°C | 0Ā°C to 70Ā°C |
Applications for QSFP-100G-LR4-I
- Data center interconnects
- Long-distance network links
- High-performance enterprise networking
Optional Accessories
- CAB-SFP28-SFP28-3M: 3m SFP28 to SFP28 cable
- FIBER-PATCH-LC-LC-SM-3M: 3m LC to LC single-mode fiber patch cable
- CVR-QSFP-SFP10G: QSFP to SFP+ adapter
QSFP-100G-LR4-I Specification
QSFP-100G-LR4-I Specifications |
|
Brand | Cisco |
Product Name | QSFP-100G-LR4-I |
Maximum Data Rate | 100 Gbps |
Interface | LC Connector |
Transmission Distance | 10 km |
Fiber Type | Single-Mode Fiber (SMF) |
Temperature Range | Industrial Temperature |
Wavelength | 1295 nm, 1300 nm, 1304 nm, 1309 nm |
Power Consumption | < 4.5 W |
Signal Format | NRZ |
Form Factor | QSFP |
EMC Standard | Complies with standards |
MTBF | ?? 10 million hours |
Modulation | NRZ |
Diagnostic Monitoring | Supported |
Optical Receiver Sensitivity | -10.6 dBm |
Optical Transmit Power | Max: 4.5 dBm |
Firmware Upgradability | Field upgradeable |
Protocols | IEEE 802.3ba |
RoHS Compliance | Yes |
Low Price Guarantee:
Compulease Networks will ensure that you receive the best possible quote & try to match your target price.
100% Money Back Guarantee:
If our products donāt meet the quality standards or expectations we offer a full and final refund.
Professional Technical Support
Our experienced technical team can provide you with support over the phone, chat, email or on site.
Genuine & Original Equipments
Be it New or Refurbished Compulease Networks guarantees you with original OEM hardware equipments.
Warranty Terms & Conditions
New - 1-3 Year Warranty | Refurbished - 90 Days Standard ( Extendable up-to 1 Year )
