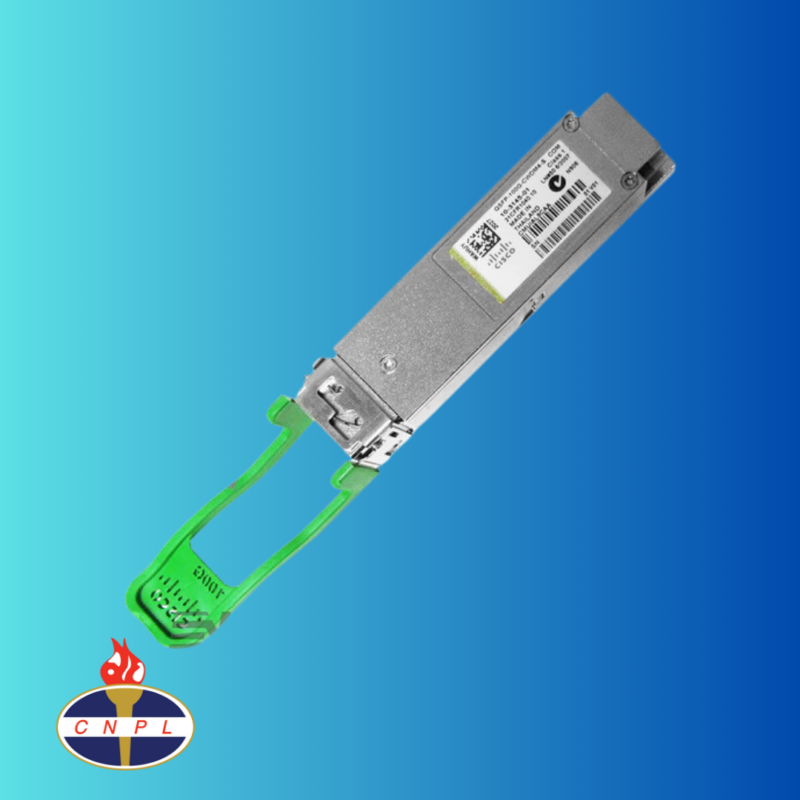

QSFP-100G-CWDM4-S
Original price was: ₹1,507,676.45.₹301,535.29Current price is: ₹301,535.29.
- Product Description: 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF
- Manufacturer: Cisco
- Part Number: QSFP-100G-CWDM4-S
- Model Number: 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF
- Model Description: QSFP-100G-CWDM4-S= - Cisco 100 Gigabit Optical Modules
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
QSFP-100G-CWDM4-S Specification
QSFP-100G-CWDM4-S Specification |
|
| Description | Cisco 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
|
QSFP Port cabling specifications |
|
| Nominal Wavelength (nm) | 1271, 1291, 1311, 1331 |
| Cable Type | SMF |
| Core Size (Microns) | G.652 |
| Modal Bandwidth (MHz*km)*1 | \ |
| Cable Distance | 2km |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Green |
| *1 Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm | |
|
Optical characteristics |
|
| Transmit Power (dBm) per lane*2 | Max:+2.5
Min:-6.5 |
| Receive Power (dBm) per lane*2*3 | Max:+2.5
Min: -11.5 |
| Receive Power (dBm) per lane | Four lanes: 1271, 1291, 1311, 1331 |
| *2 Transmitter and receiver power is average optical power, unless specified
*3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation |
|
|
Environmental Conditions and Power Requirements |
|
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
|
Regulatory and Standards compliance |
|
| Standards | •SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) – Rev 1.8 May 10, 2013
•SFF-8636: Common Management Interface – DRAFT Rev 1.9 May 12, 2014 •802.3™-2012 IEEE Standard for Ethernet •IEEE 802.3ba Amendment of IEEE Std 802.3-2012 •IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •RoHS 6 |
| Safety | •Cable jacket of QSFP copper modules is UL E116441 Compliant
•QSFP copper cables are ELV compliant |
