CPAK-10X10G-ERL

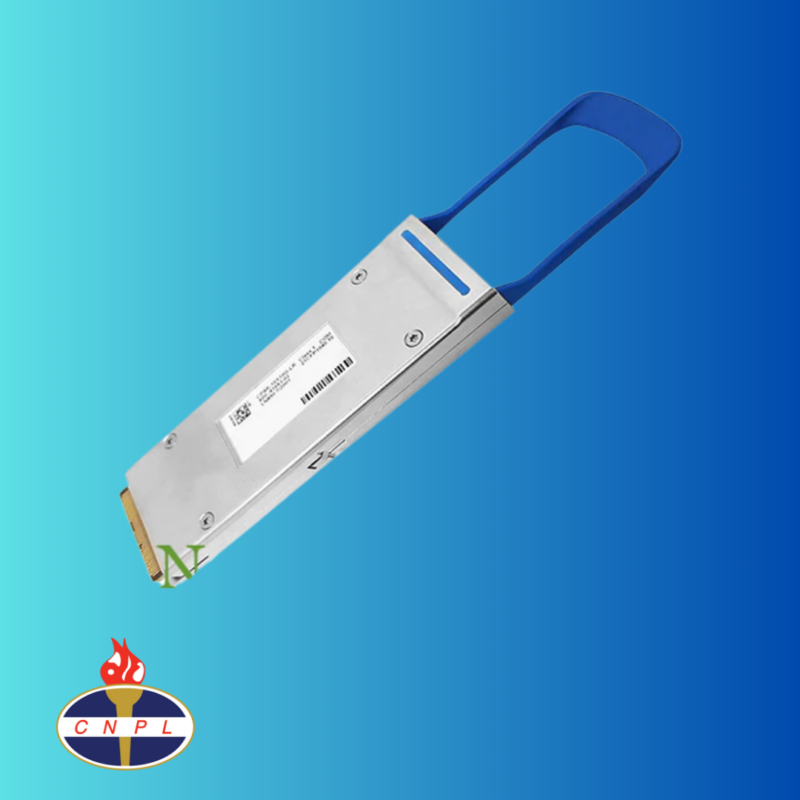

Cisco CPAK-10X10G-ERL Module Overview

The Cisco CPAK-10X10G-ERL is a high-performance, high-density transceiver module designed to deliver exceptional 100-Gbps connectivity solutions. Engineered for enterprise and service provider data centers, as well as edge networks, this module provides reliable long-range connectivity over single-mode fiber (SMF) with a range of up to 25 kilometers.

Key Specifications

• Product Code: CPAK-10X10G-ERL=
• Description: 10x10G-ERL Cisco CPAK Module for SMF
• Dimensions: 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
• Wavelength: 1550 nm
• Cable Type: SMF (24 fibers)
• Core Size: 9-micron core SMF per G.652
• Cable Distance: Up to 25 km

Features and Benefits

• High Bandwidth and Scalability: Supports up to 10 independent 10-Gigabit Ethernet channels, offering up to 1 Tbps of front-panel bandwidth to meet increasing data demands.
• Energy Efficiency: Consumes 40% less power than CFP2 and 70% less power than CFP form factors, optimizing energy usage in high-density environments.
• Compact Form Factor: Provides a 20% increase in port density compared to competing modules, conserving rack space while maximizing performance.
• Hot-Swappable Design: Simplifies replacement or upgrades without network downtime, ensuring seamless operation and business continuity.
• Flexible Deployment: Compatible with various fiber types and distances, offering adaptability for a range of network architectures.
• Investment Protection: The pay-as-you-grow model supports interoperability with 100-Gbps, 40-Gbps, and 10-Gbps line cards, enabling cost-effective scalability.
• Performance Monitoring: Integrated Digital Optical Monitoring (DOM) feature ensures real-time tracking of module performance and operational health.
• Cisco Certification and Quality Assurance: Cisco ID functionality guarantees compatibility and certification for optimal performance with Cisco platforms.
• Standards Compliance: Interoperable with IEEE-compliant modules, including 100GBASE-ERL, 100GBASE-SR4, 40GBASE-SR4, and 10GBASE-SR, for seamless integration.

Applications

• Enterprise Data Centers: Ideal for long-distance connections in high-speed, large-scale data center environments.
• Service Provider Edge Networks: Supports robust and efficient connectivity for service providers handling high data loads.
• Long-Range Deployments: Suited for extended-distance networking applications requiring stable performance up to 25 km.

Platform Compatibility

The CPAK-10X10G-ERL module is compatible with a range of Cisco platforms, including:

• ASR 9000 Series Routers
• CRS-X Carrier Routing Systems
• NCS 2000, 4000, and 6000 Series Routers
• Nexus 7000 and 7700 Series Switches
• Cisco ONS Transport Platforms

Comparison with Similar Modules

CPAK-10X10G-ERL Specification
