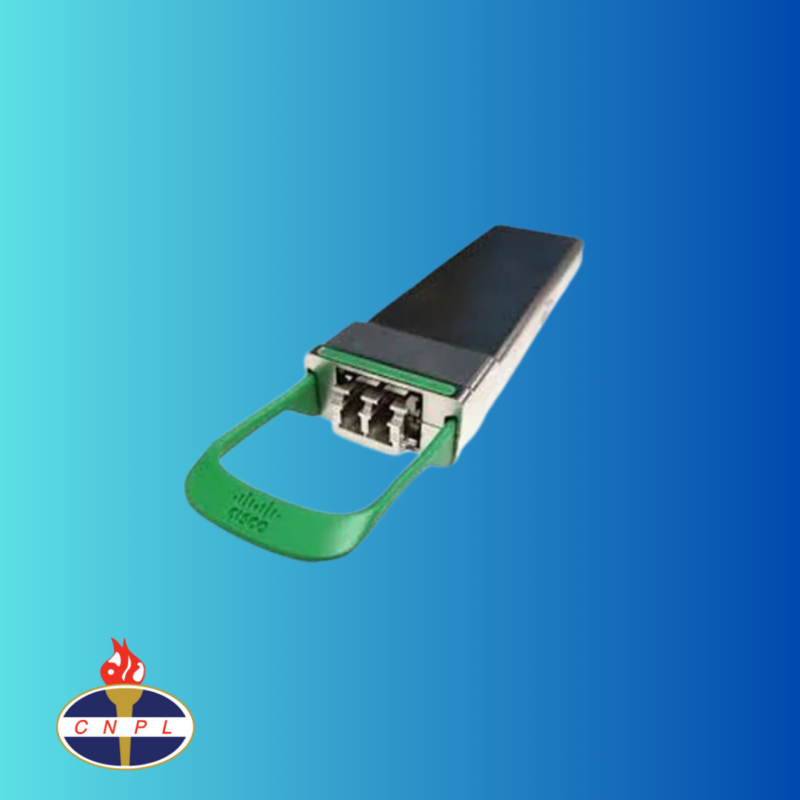

CPAK-100G-CWDM4
Original price was: ₹2,815,266.30.₹563,053.26Current price is: ₹563,053.26.
- Product Description: CPAK optical transceiver module,100G, CWDM4, 2km SMF
- Manufacturer: Cisco
- Part Number: CPAK-100G-CWDM4
- Model Number: CPAK-100G-CWDM4 - Cisco 100 Gigabit Optical Modules
- Model Description: CPAK optical transceiver module,100G, CWDM4, 2km SMF
- Rating:
- Product Can Be: Bought , Rented ,
- Availability: In Stock
- Also Available In: Refurbished
- Condition: New
- Warranty: New- 1 Year
Order Procedure
- Click on Get Quote button in the product page
- Provide Your Information
- Once your quote is received: Our expert will send you an email with our pricing and other information.
24/7 Online Service
USA- +1- 860-730-3336
UK- +1- 860-730-3336
India- +91-988-672-7317
Cisco CPAK-100G-CWDM4 Overview
The Cisco CPAK-100G-CWDM4 module is a high-performance transceiver designed for 100-Gbps connectivity over single-mode fiber (SMF). This compact module is ideal for enterprise and service provider data centers, as well as edge network applications requiring high-density and cost-effective solutions.
Quick Specifications
- Product Code: CPAK-100G-CWDM4
- Description: 100GBASE-CWDM4 Cisco CPAK Module for SMF
- Dimensions: 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
- Wavelength Range: 1271 nm, 1291 nm, 1311 nm, 1331 nm
- Cable Type: Duplex SMF
- Core Size: 9-micron core (G.652-compliant)
- Cable Distance: Up to 2 kilometers
Key Features and Benefits
- High Bandwidth Capacity: Supports up to 10 100-Gigabit Ethernet connections, delivering an impressive 1 Tbps of front-panel bandwidth for demanding networking environments.
- Energy Efficiency: Consumes 40% less power than CFP2 modules and 70% less than CFP modules, reducing operational costs and heat generation.
- Compact Design: Enables 20% greater port density, optimizing space utilization in high-density networking setups.
- Hot-Swappable: Simplifies installation and maintenance by allowing seamless replacement without interrupting operations.
- Flexible Compatibility: Interoperable with IEEE-compliant standards, including 100GBASE-SR4, 100GBASE-LR4, 40GBASE-SR4, and 10GBASE-LR, ensuring versatile deployment options.
- Digital Optical Monitoring (DOM): Provides real-time performance monitoring to ensure network reliability and uptime.
- Cisco Quality Identification (ID): Guarantees certified compatibility and performance on Cisco platforms.
- Future-Ready Investment: Supports a pay-as-you-grow model, making it easier to scale bandwidth requirements without extensive hardware upgrades.
Applications
- Enterprise Data Centers: Offers high-speed, low-latency connectivity to support increasing data demands.
- Service Provider Networks: Facilitates efficient edge network deployments and seamless upgrades to 100G infrastructure.
- High-Density Environments: Ideal for conserving rack space while delivering exceptional performance in large-scale deployments.
Platform Support
The Cisco CPAK-100G-CWDM4 module is compatible with a wide range of Cisco platforms, including:
- ASR 9000 Series Routers
- CRS-X Carrier Routing System
- NCS 2000, 4000, and 6000 Series Routers
- Nexus 7000 and 7700 Series Switches
- Cisco ONS Transport Platforms
Comparison with Similar Modules
| Model | Key Difference |
|---|---|
| CPAK-100G-LR4= | Supports long-range transmission up to 10 km using LC connectors. |
| CPAK-100G-ER4L= | Designed for extended range up to 25 km over SMF. |
| CPAK-100G-PSM4= | Optimized for short-range connections up to 500 meters using 12-fiber SMF. |
| CPAK-100G-SR4= | Suited for multimode fiber (MMF) applications, supporting distances up to 70 m. |
| CPAK-100G-SR10= | Offers higher port density and breakout support for 10x10G connections. |
CPAK-100G-CWDM4 Specification
CPAK-100G-CWDM4 Specification |
|
| Description | 100GBASE-CWDM4 Cisco CPAK Module for SMF |
| Dimensions | 11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Cisco CPAK port cabling specifications |
|
| Wavelength (nm) | 1271, 1291, 1311, 1331 |
| Cable Type | SMF Duplex |
| Core Size (Microns) | 9-micron core SMF per G.652 |
| Modal Bandwidth (MHz*km) | \ |
| Cable Distance | 2 km |
|
Optical transmit and receive specifications |
|
| Type | 100GBASE CWDM4 SMF |
| Transmit Power | Max:+2.5 per lane
Min:-6.5 per lane |
| Receive Power (dBm) | Max:+2.5 per lane
Min:-10 per lane |
| Transmit and Receive Center Wavelength Range (nm) | 100GBASE CWDM4 SMF |
| Supported Mode | 1x100G |
| Supported Protocol | IEEE 802.3ba |
|
Environmental conditions and power requirements |
|
| Storage temperature | -40 to 85° C (-40 to 185° F) |
| Operating temperature | 0 to 70° C (32 to 158° F) |
| Power consumption | At 70° C: <9.0 W maximum |
